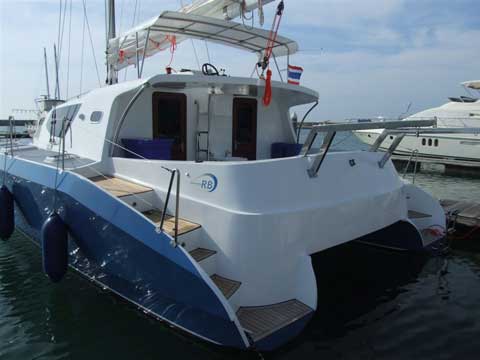

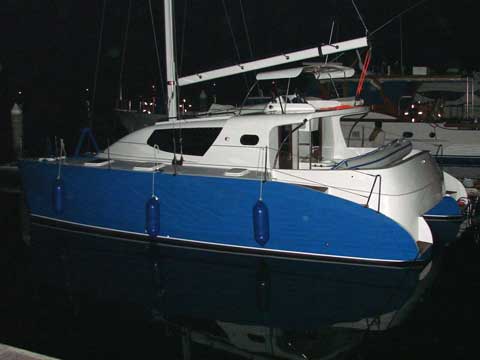

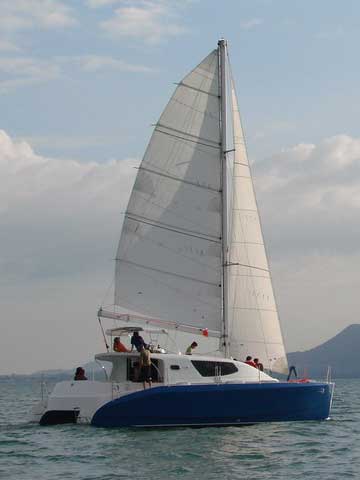

Sailing catamaran RB 34'
Our production
of this new RB 34 is begun, we sold 4 units within few months and the first
unit is finally ready.
Specs are
available here below.
Our RB 34 is a
new concept that is specifically studied to be a safe and fast enough family
cruiser, with plenty of space, where to store equipments and plenty of
galley and accommodation; and a small but very functional charter vessel.
Some of our
clients are particularly interested in combining these 2 targets: a boat
that can be used for the family and in case can provide some turnover, to
pay the Marina fees, for example.
For clients
willing to keep the boat in Thailand, we offer a unique financing plan, till
the 40% of the value: please inquire.
We got 2
models, available to be ordered and with a delivery time of about 8-10
months:
RB 34
Base (Plywood / outboard motors).
RB 34 Luxury
(Honeycomb construction, luxury interior, 2 x 14 hp sail drive Yanmar
inboard motors).

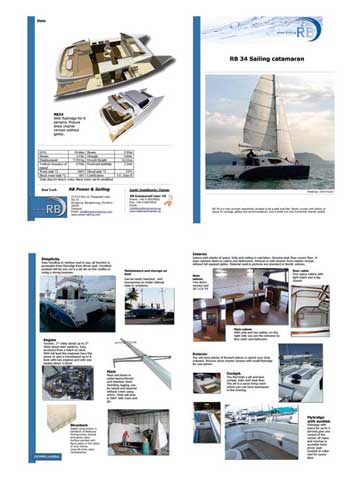

Download the
Brochure in PDF...
...or in JPG.
|
Page 1
 |
Page 2
 |
|
|
|
|
RB 34 motorsailing catamaran
|
Specifications |
| LOA 10.46 mt |
| Beam 5.93 mt |
| Draught 0.54 |
| Vertical
clearance of tunnel 0.59 |
| Freeboard
midship 1.24 |
| Displacement
7.353 |
Construction
in sandwich of Nidacore (honeycomb), biaxial and epoxy resin.
Light filler,
epoxy/microballoons.
Epoxy paint.
Stainless
steel used is all AISI 316, tig welded and polished as a mirror.

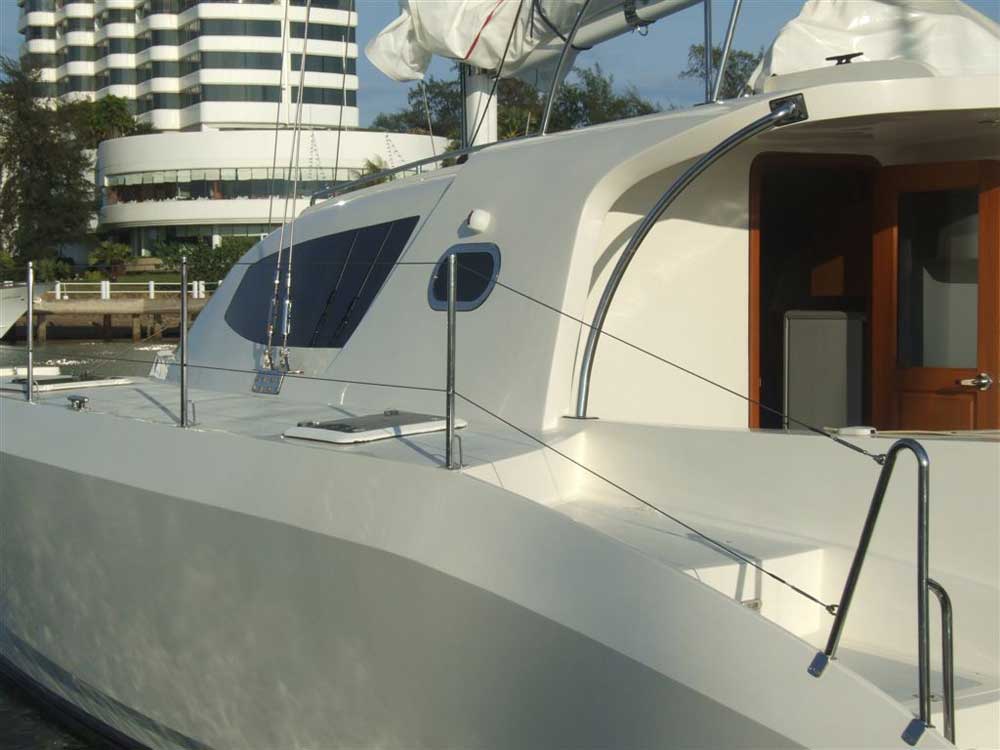

Life line
completed,
6 cleats
8 hatches
Flybridge.
|
Accommodations |

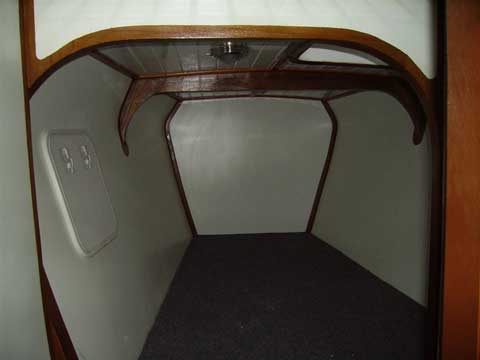

| 4 cabins, with
twin beds, each one with a wooden closet, completed with
mattresses. |

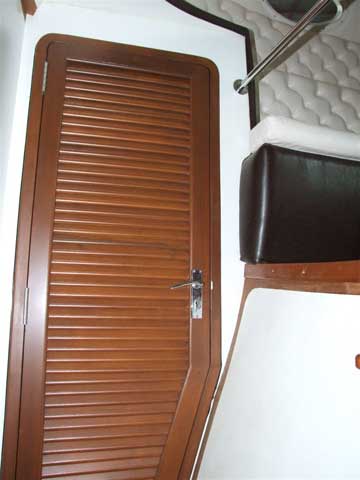

| 2 heads with
pressure water, WC, sink and shower. |
| Full head room
all around. |

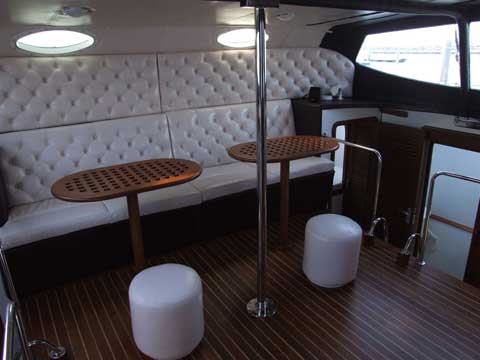

| Leather sofa
and ceiling of the main saloon. |
| Teak grate
tables (2) and settees (2) |
|

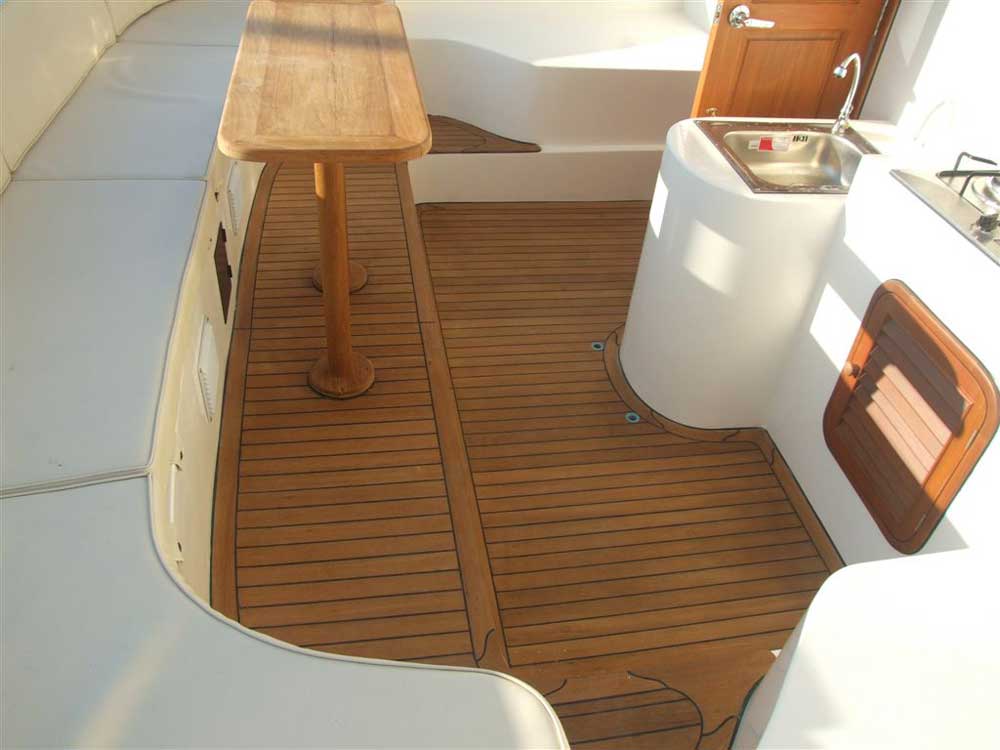

Teak holly floors |
|

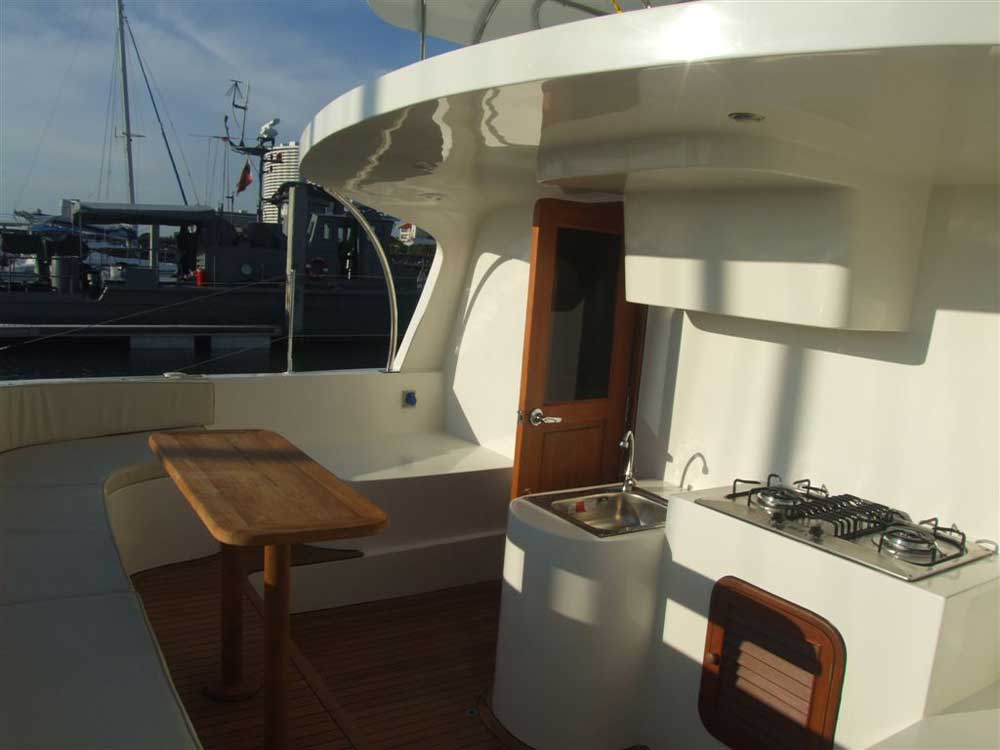

Galley |
| Sink |
| Microwave |
| BBQ |
|
Fridge Waeco 12V |
| Stove
(propane) |
|
Power Plant |
| 2 units
Yanmar Diesel 14 hp sail drive |
|
Folding props |
| Fuel
separator |
| Marine
exhaust with water box |
|

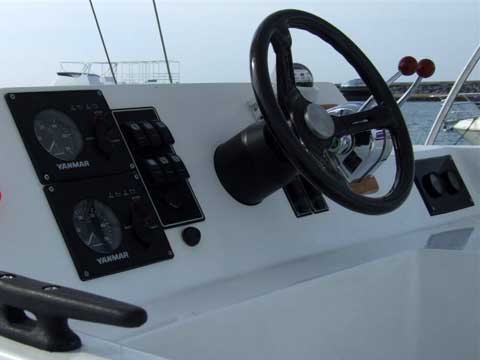

Steering |
|
Hydraulic steering with control by the fly bridge |
| Carbon
fiber dashboard and steering wheel |
|
Emergency steering |
|
Electricity aboard |
| 4
batteries 12 V x 70 Amp |
|
Inverter 3000 W |
|
Battery charger |
|
Line 12 V |
|
Outlet 220 V |
Shore to ship
point
Genset on
request
|
Electronic
included |

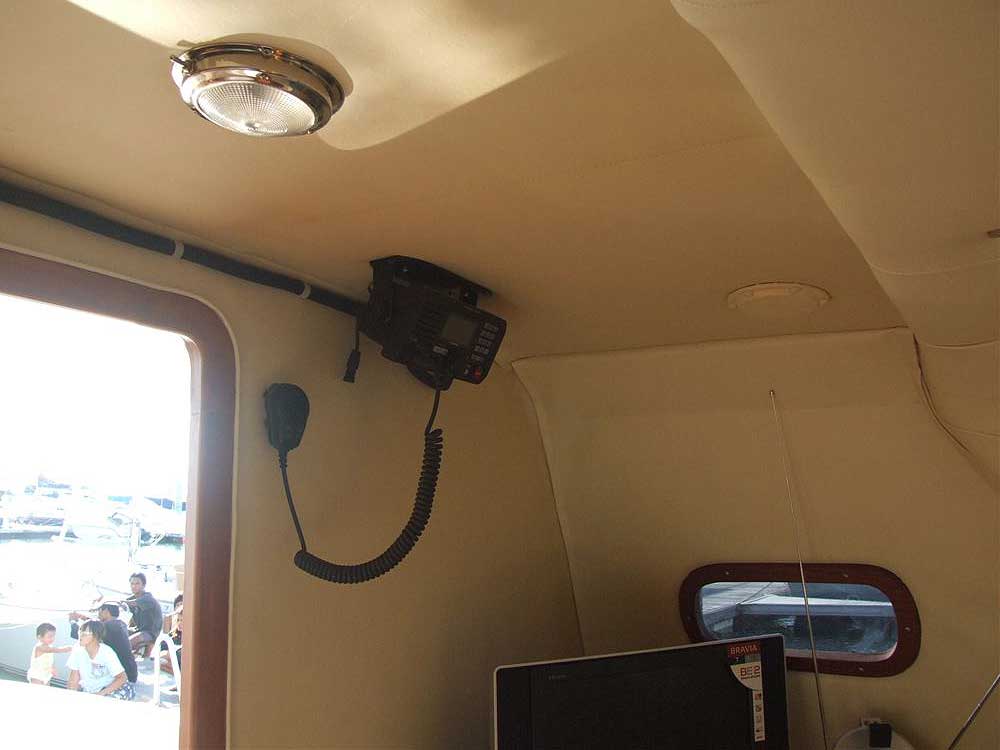

| VHF |
| Sounder/GPS |
| CD player |

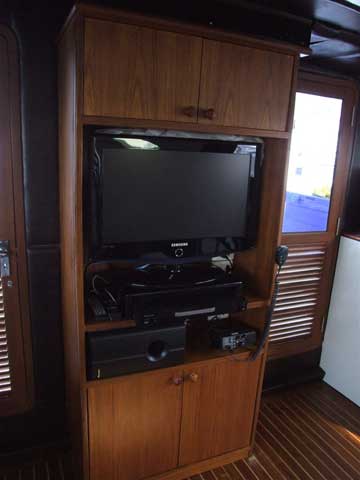

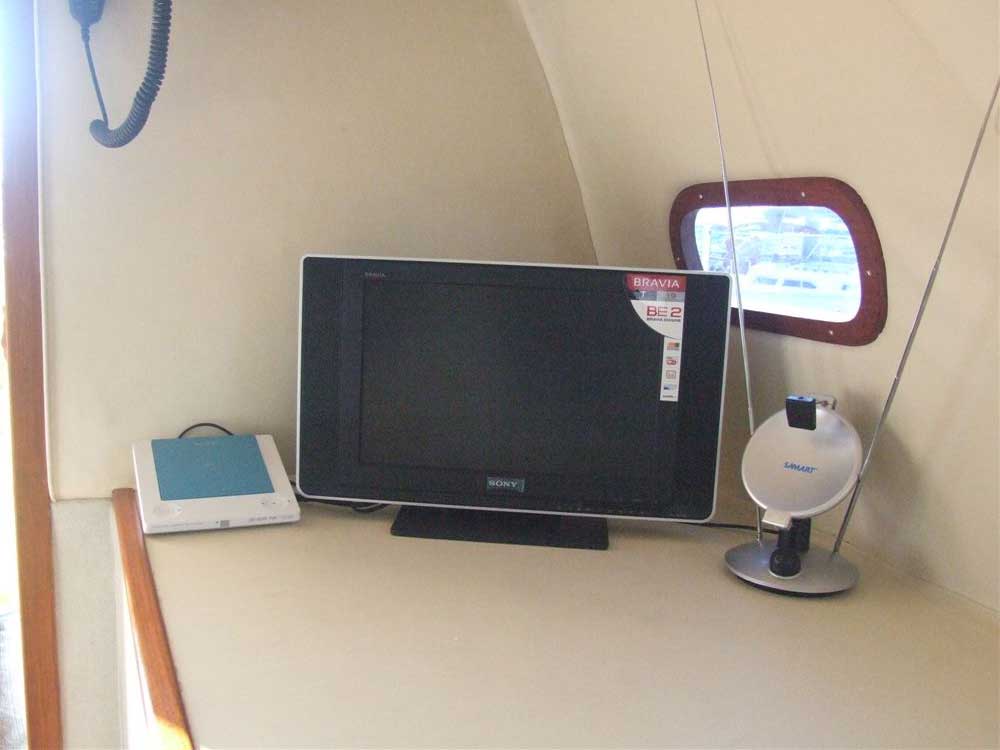

| TV plasma |
| DVD |
| Compass |
|
Exterior |
| Teak deck |
| Handles |
|

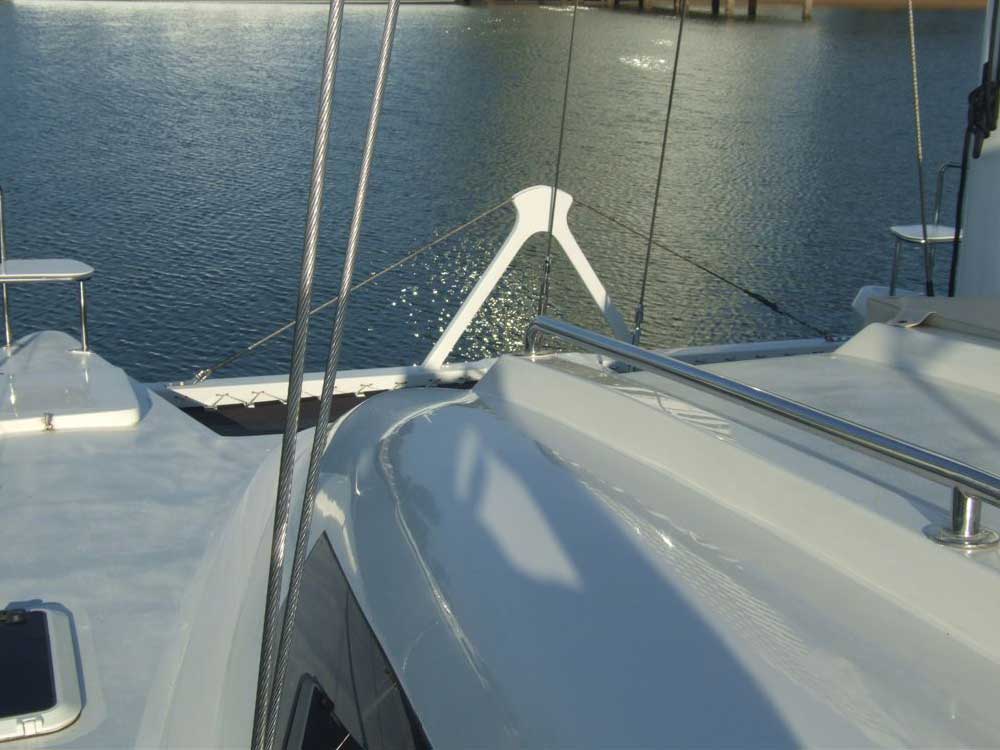

Foredeck nets |
| Swimming
ladder |
| Ladder to
the flybridge |
| Storage
area under cockpit settee |

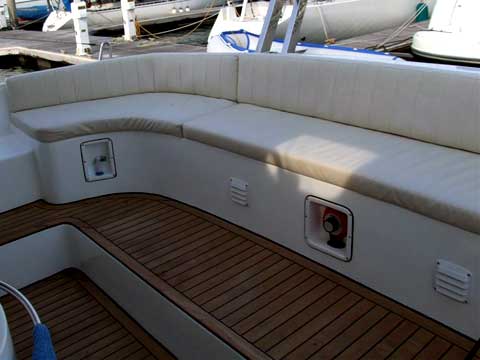

| Cockpit
shower |
| 4
portholes |

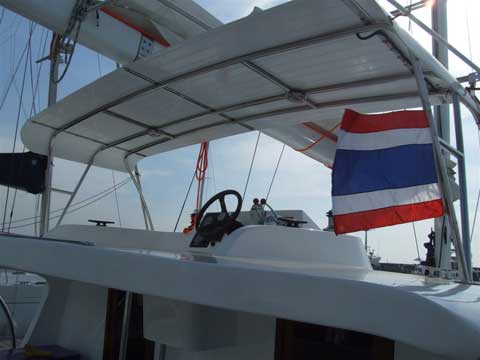

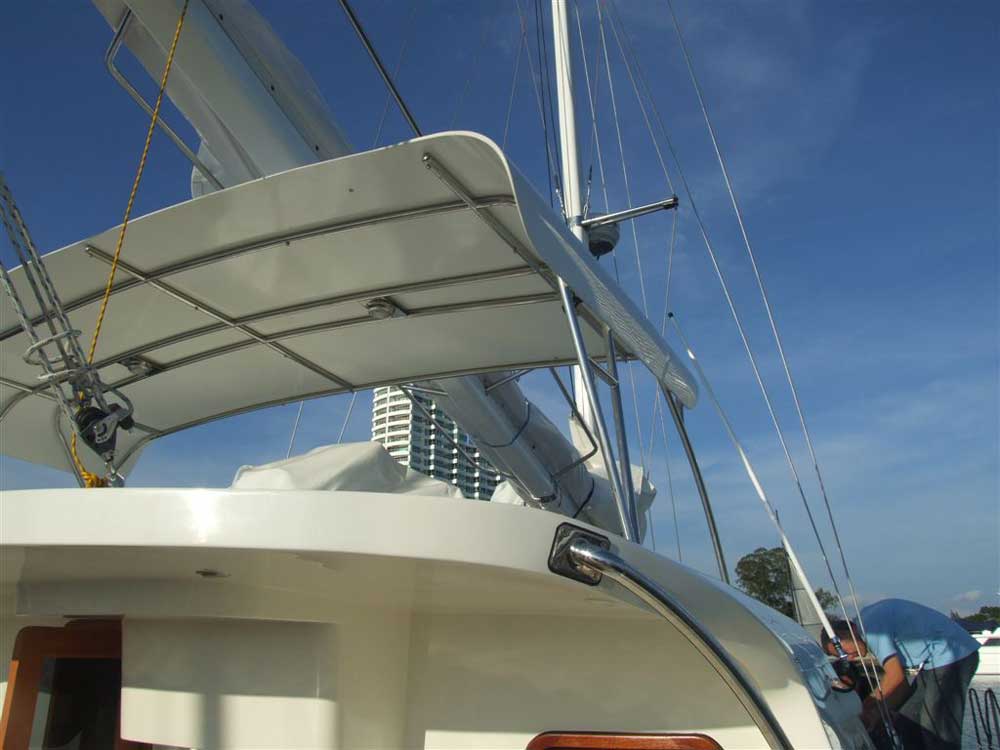

| Flybridge
canopy in stainless steel/fiberglass |
| Cradles on
request |
|
Rig |
| Mast
and boom in cedar/epoxy/biaxial |
|

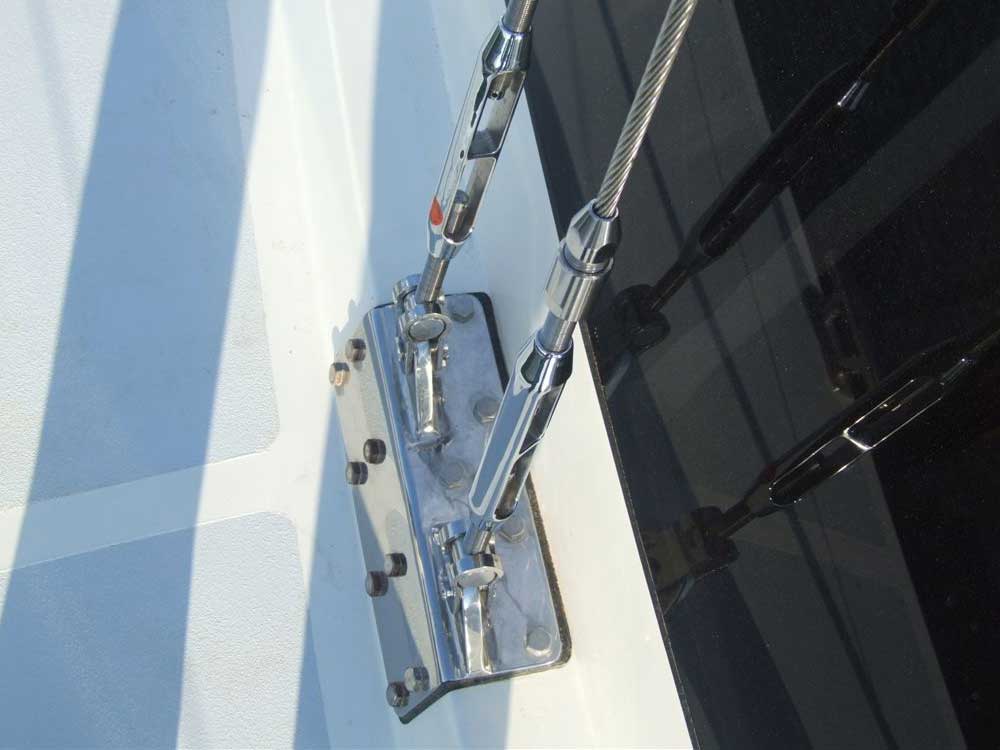

Stainless steel standing rigging |
| Rolly
Tasker sails (50 sq mts main + genoa) |
| Swan
ropes |
| 4
Harken winches |
| 2 x 2
Jammers |
| 2
genoa travelers in stainless steel |
| 1 main
sail traveler in stainless steel |
| Roller
furling on request |
Here briefly
some of the unique features of this model
-

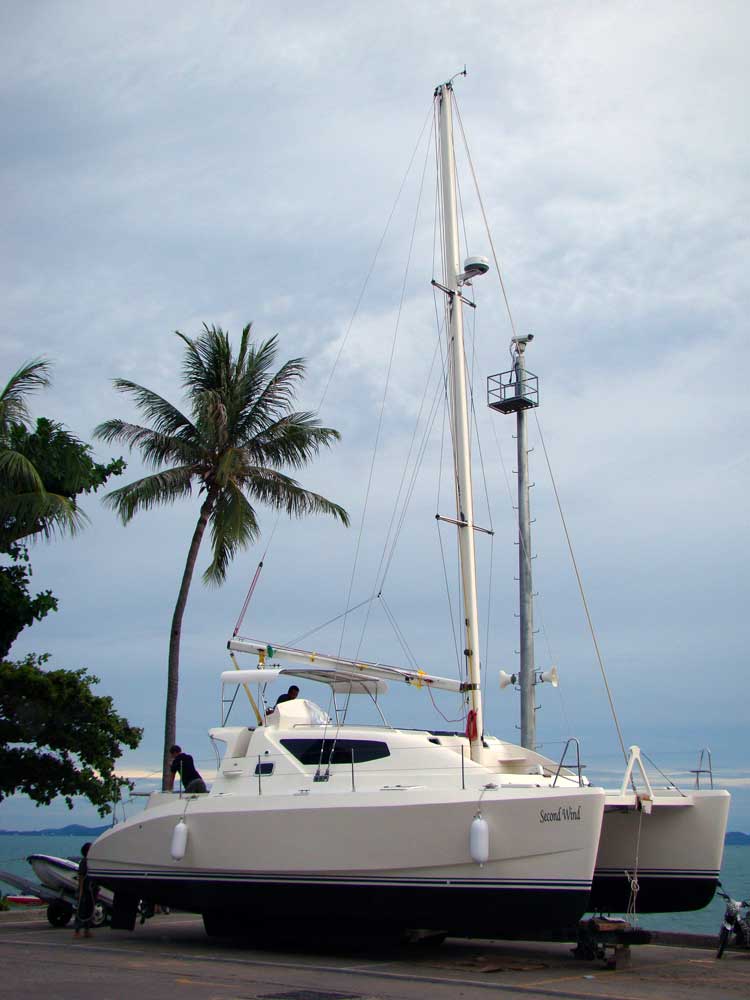

can be
easily beached, without risks or problems
-
single
handling is possible and easy
-
mast can
be raised and lowered without crane
-
the boat
can be landed on a simple trailer and serviced without needing a port or
a Marina facilities
-
excellent
payload will let possible to run a diving businness
-
can carry
a jet sky on the aft cradles ( enough displacement at stern )
-
the fly
bridge let a safe and easy control of the boat, when mooring
-

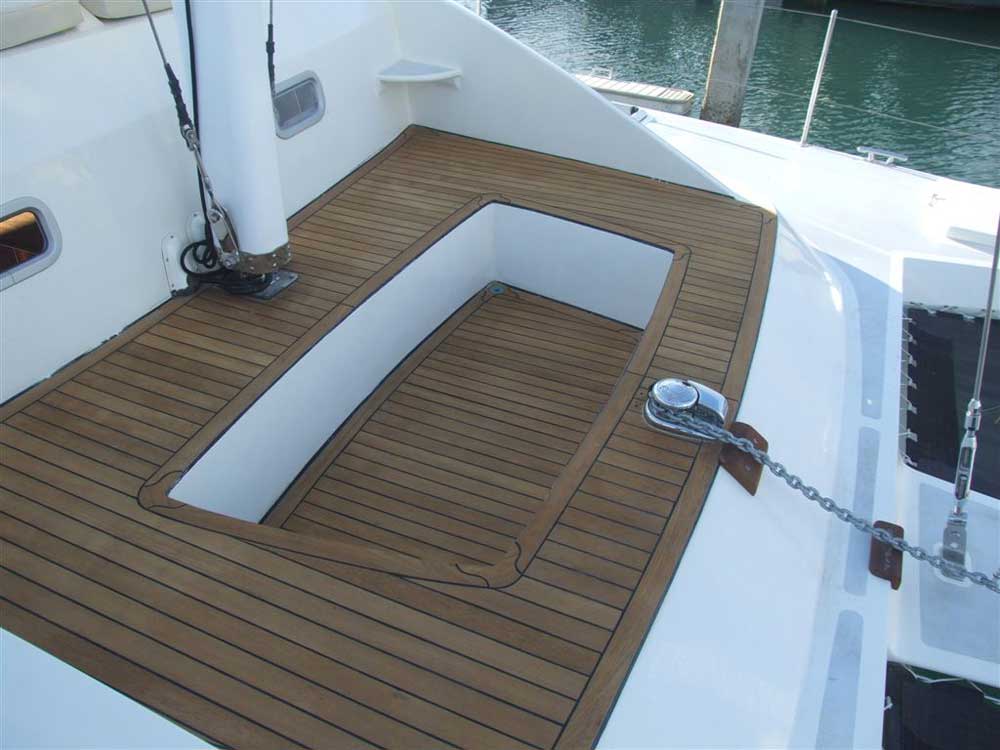

bow
cockpit, where to enjoy the sea and the wind without any noise
-
easy to
remove the motors in case
-

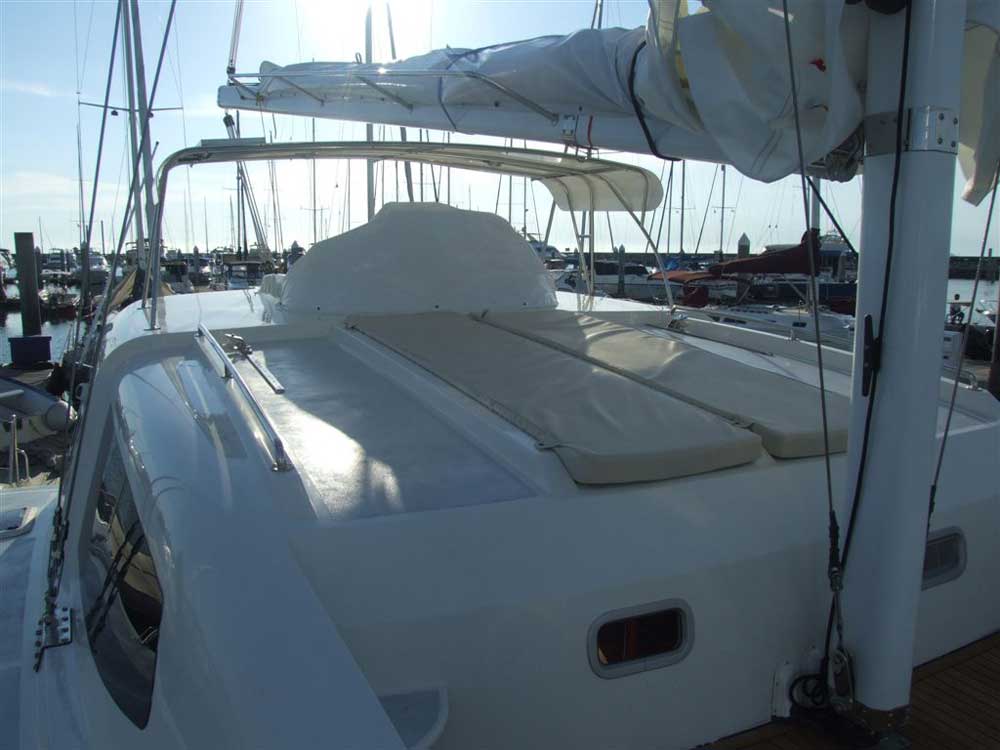

sunbeds on
the cabin top; the best place where to relax that is typically wasted in
any other cat
We will keep
adding pics on these pages.
Inquires from interested purchasers and from brokers are welcome.
RB 34 cat is
an excellent first boat for a beginner and at the same time can be a life
time investment. We are sure that it will not be possible to find on the
market a cat with the same features at the same price.
Our recommended
motors for RB 34.
Yanmar type 2YM15 - The Powerful Gem.
|
Configuration |
4-stroke,
vertical, water cooled diesel engine |
|
Maximum output at crankshaft |
* 10.3 kW (14 hp)
/ 3600 rpm
** 10.0 kW (13.6 hp) / 3600 rpm |
|
Continuous rating output at crankshaft |
9.4 kw (12.8 hp)
/ 3489 rpm |
|
Displacement |
0.570 L (34.7 cu
in) |
| Bore
x stroke |
70 mm x 74 mm
(2.75 in x 2.91 in) |
|
|
2 |
|
Combustion system |
Indirect
injection |
|
Aspiration |
Natural
aspiration |
|
Starting system |
Electric starting
12 V - 1.4 kW |
|
Alternator |
12 V - 60 A (80 A
optional) |
|
Cooling system |
Fresh water
cooling with heat exchanger |
|
Lubrication system |
Enclosed, forced
lubricating system |
|
Direction of rotation (crankshaft) |
Counter clockwise
viewed from stern |
| Dry
weight without gear |
103 kg (227 lbs) |
Environmental
|
BSO II, SAV, EPA
II compliant and will meet the 2003/44/EC emission requirements |
|
Engine mounting |
Rubber type
exible mounting |
Projects |
|

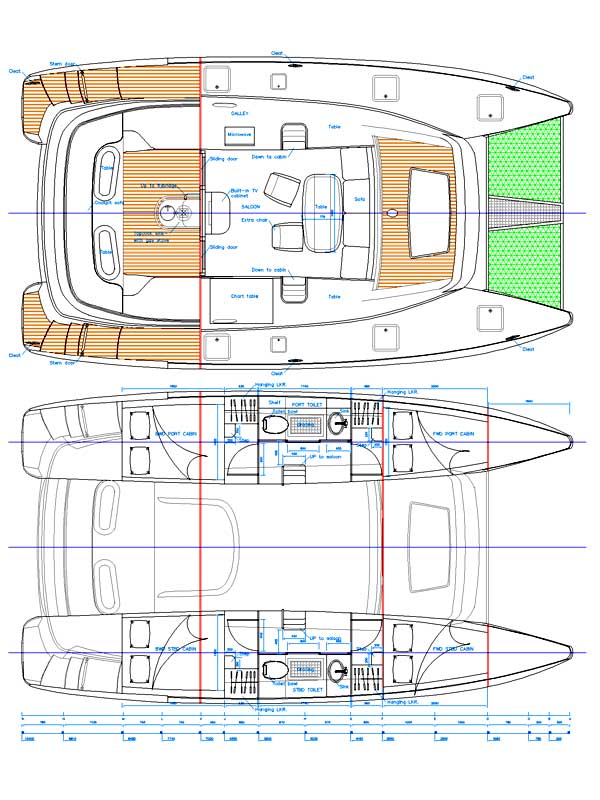

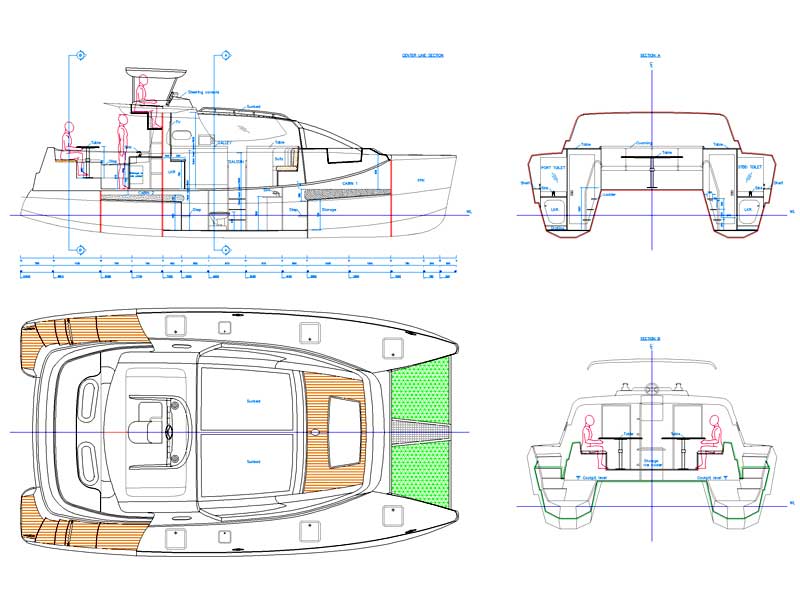

General arrangement
recommended.
For all the layouts in full
size, please enquire us at
info@powerandsailing.com
|

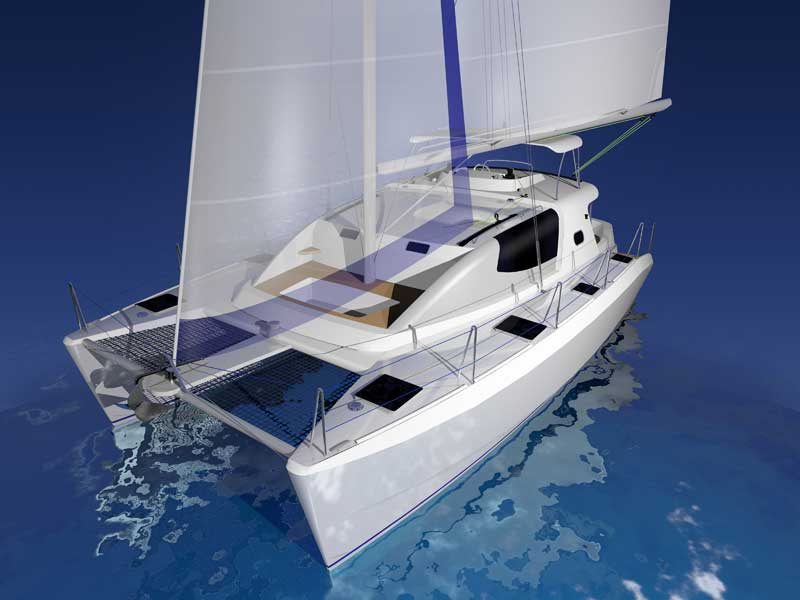

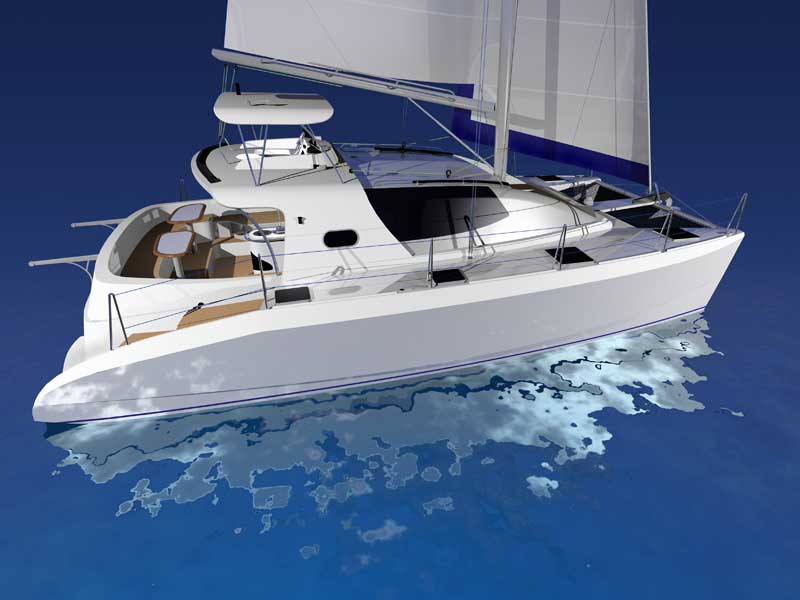

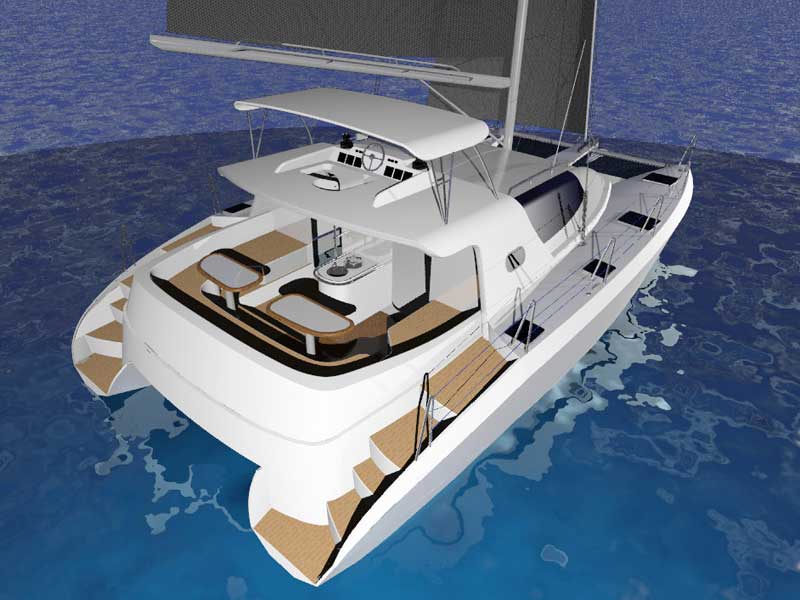

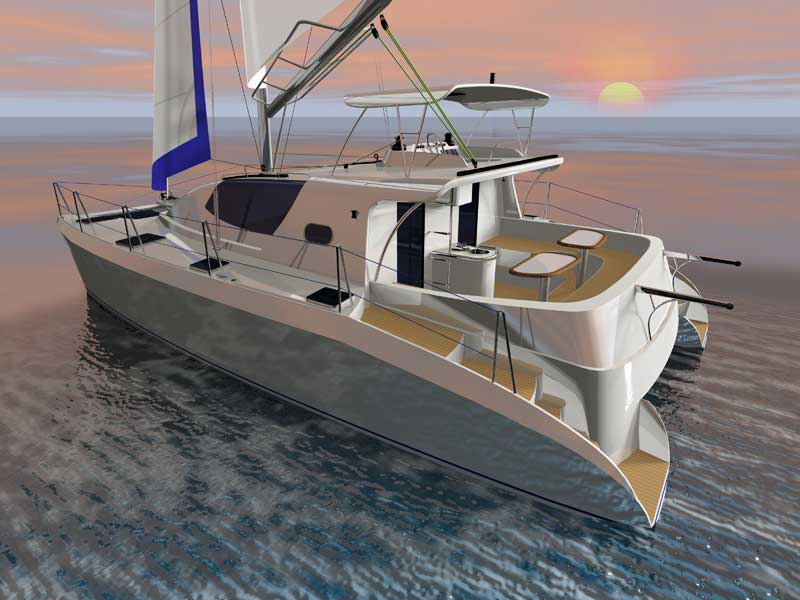

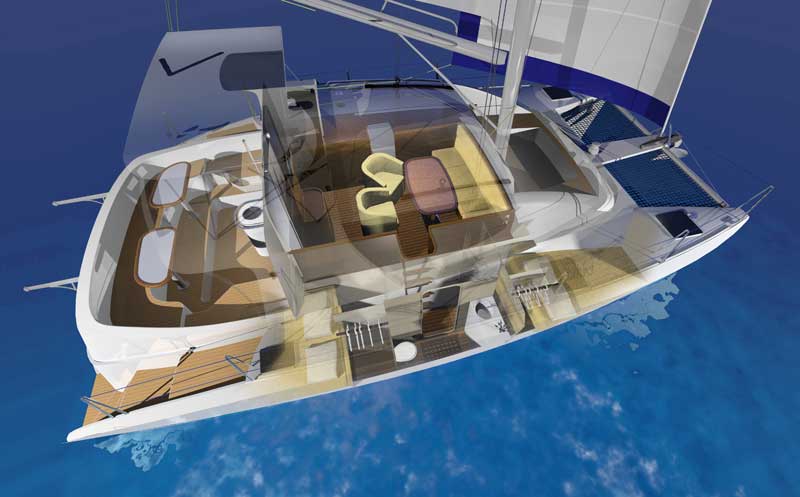

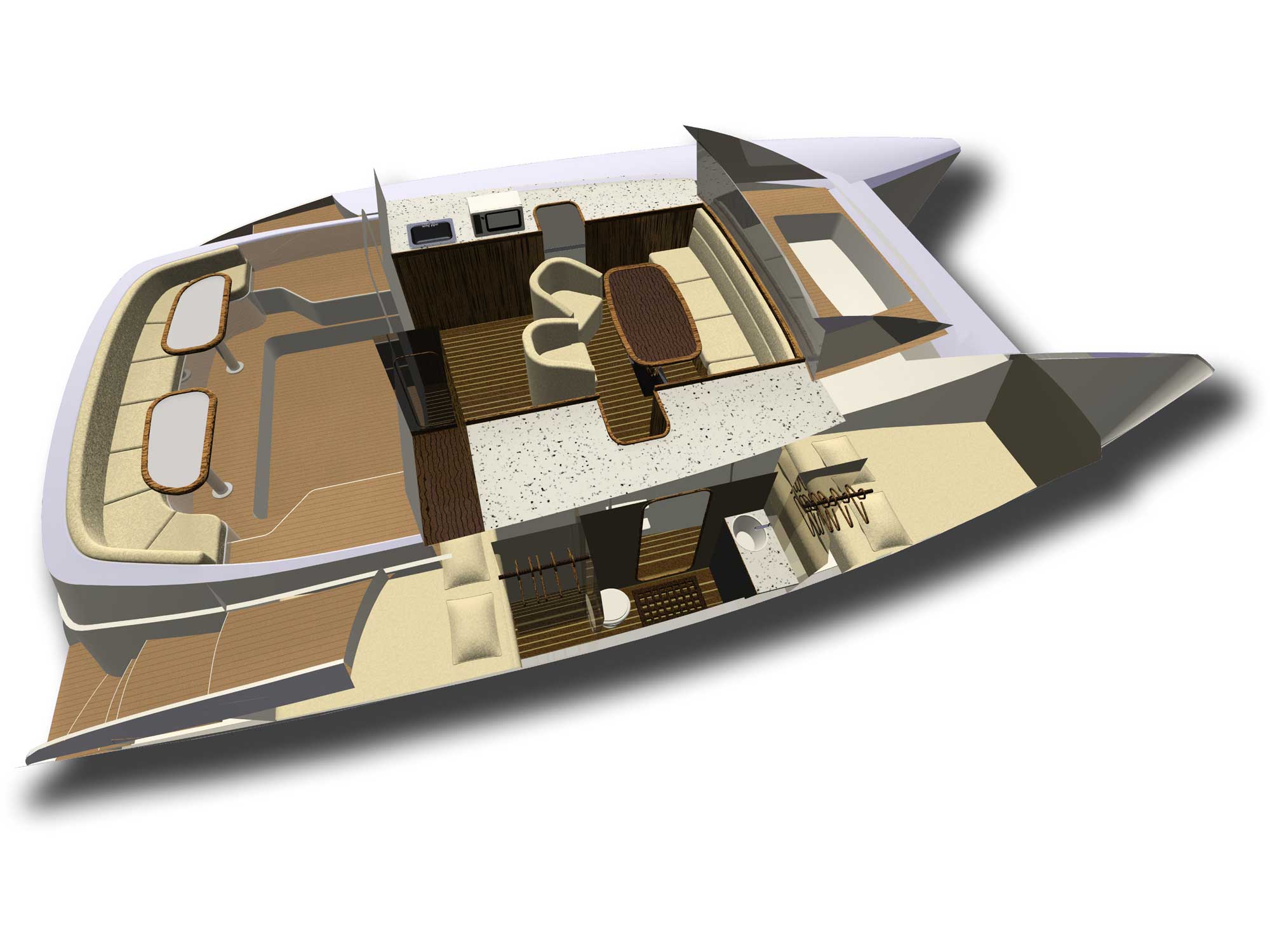

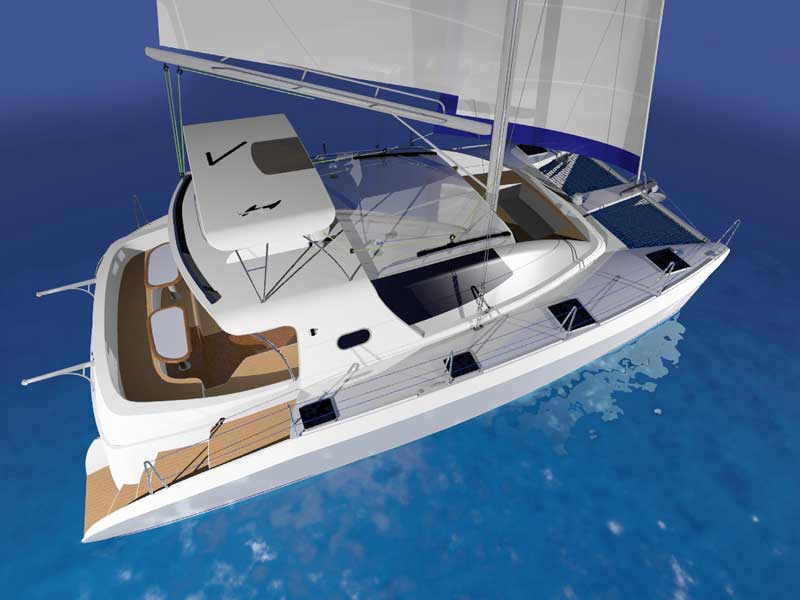

Renderings |
 |
|
"Our latest RB 34 "Jackie" left Ocean Marina Yacht Club yesterday, 26th
March 2009, heading to Singapore, where his owner, Mr. Steven, will keep it.

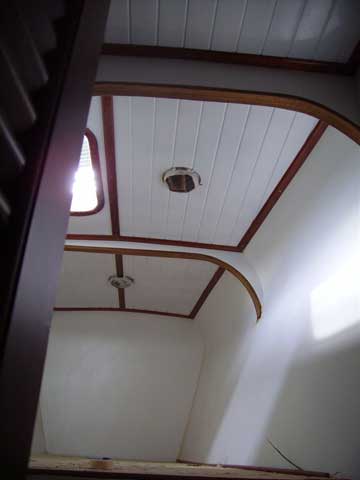

The interior has been customized, with a new sofa' U shaped, 3 cabins, a
roomy store, and a single large size head. This unit got a massive 6.5 KW
genset, fully air conditioning system, chartplotter , autopilot and radar.
RB 34 is still the best choice for a comfortable and not too expensive
living aboard yacht, for fishing week ends and for a day charter operation.
Please inquire, if you are looking for custom made interior, as any
modification is always welcome.
|
